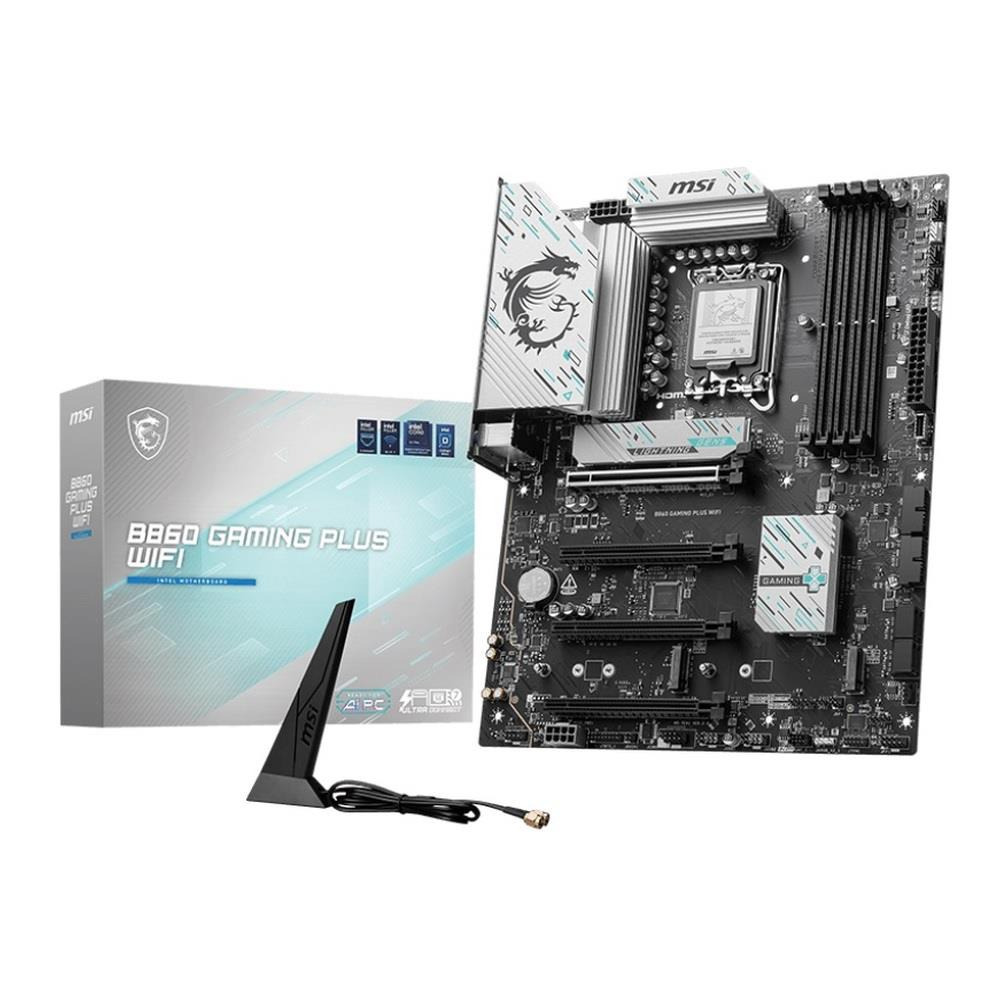

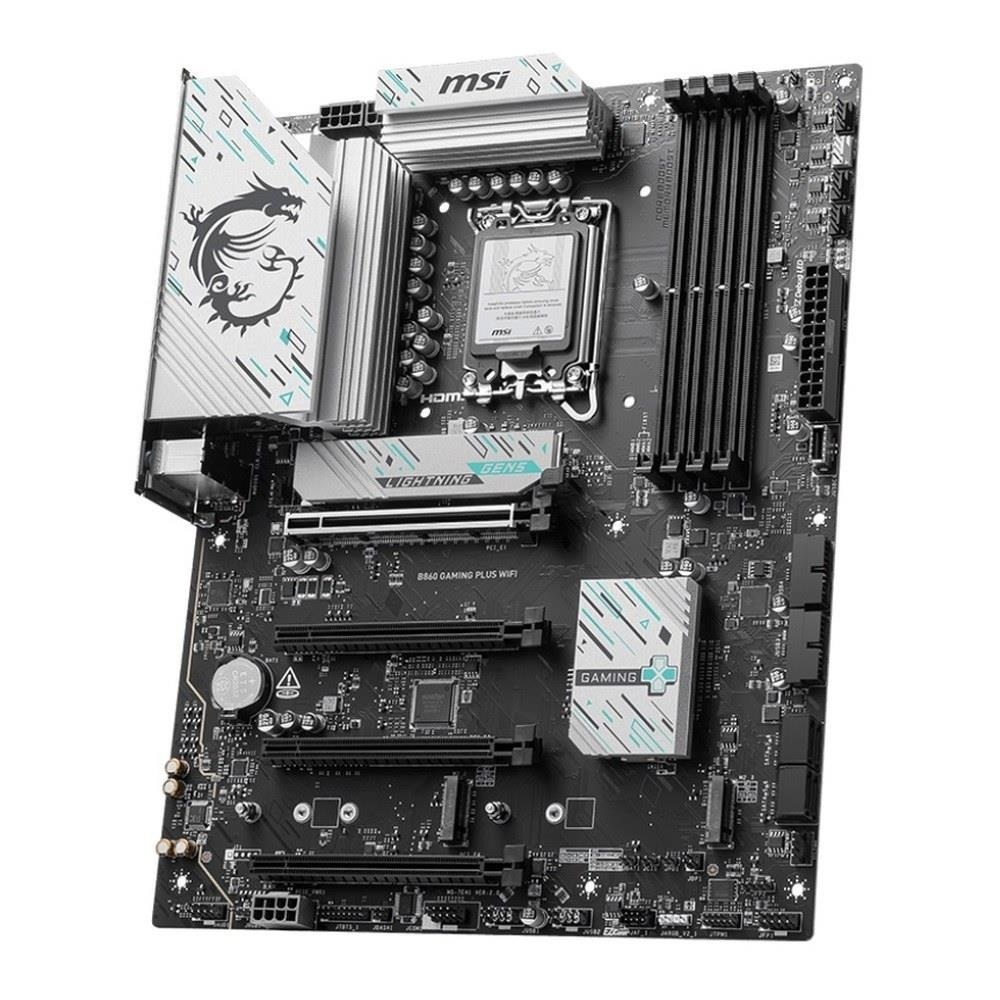

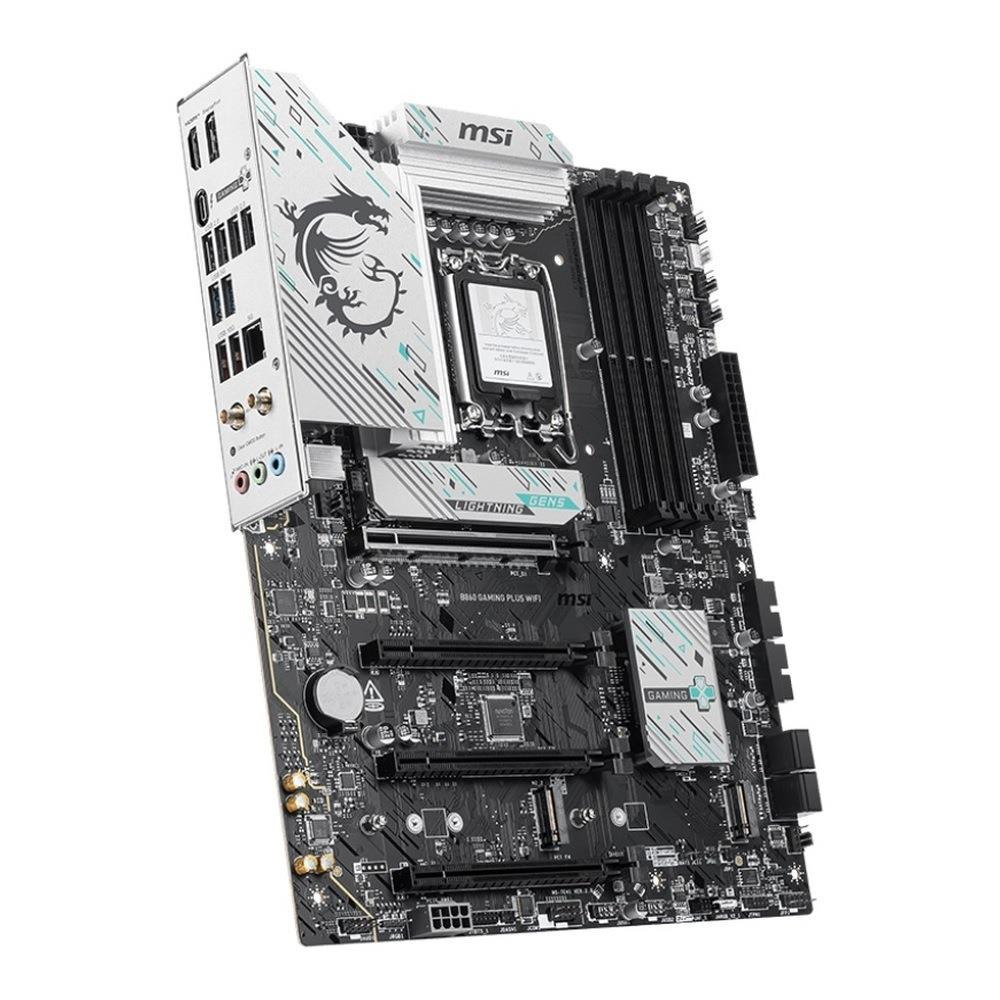

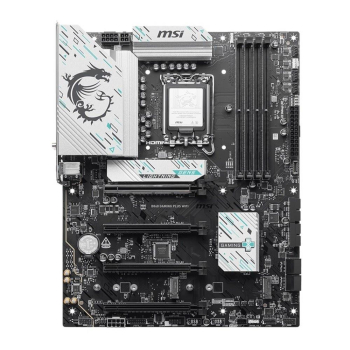

Płyta MSI B860 GAMING PLUS WIFI /B860/DDR5/SATA3/M.2/TB4/WiFi/BT/PCIe5.0/s.1851/ATX

Parametry

• Gniazdo procesora: Socket 1851
• Obsługiwane typy procesorów: Intel Core Ultra Processors (series 2)
• Uwagi do procesora:
• Format płyty: ATX
• BIOS:
• Chipset płyty głównej: Intel® B860
• Ilość złącz pamięci DDR5: 4
• Maksymalna wielkość pamięci: 256 GB
• Tryb pracy pamięci RAM: Dual Channel
• Standard pamięci: DDR5-8800 (OC), DDR5-8600 (OC), DDR5-8400 (OC), DDR5-8200 (OC), DDR5-8000 (OC), DDR5-7900 (OC), DDR5-7800 (OC), DDR5-7600 (OC), DDR5-7200 (OC), DDR5-7000 (OC), DDR5-6800 (OC), DDR5-6400 (OC), DDR5-6400, DDR5-6200, DDR5-6000, DDR5-5800, DDR5-5600, DDR5-5400, DDR5-5200, DDR5-5000, DDR5-4800
• Uwagi do pamięci RAM: Max. overclocking frequency:, - 1DPC 1R Max speed up to 8800+ MT/s, - 1DPC 2R Max speed up to 7200+ MT/s, - 2DPC 1R Max speed up to 6400+ MT/s, - 2DPC 2R Max speed up to 5600+ MT/s, Supports Intel® POR Speed and JEDEC Speed, Supports Memory Overclocking and Intel® XMP 3.0, Supports non-ECC, un-buffered memory, Supports CUDIMM, The DIMM slots on this motherboard have double-sided latches
• Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,5,10 + 3x M.2
• Uwagi do kontrolera SATA: - M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 ,, supports 2280/2260 devices, - M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode,, supports 2280/2260/2242 devices, - M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode,
• Gniazda karty graficznej: HDMI, DisplayPort, Thunderbolt™ 4
• Uwagi do karty graficznej: Support HDMI 2.1, maximum resolution of 4K 60Hz, Support DisplayPort 1.4, maximum resolution of 4K 60Hz, Thunderbolt 4 ports, supporting DisplayPort 2.1 with UHBR20 over, USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz, Available only on processors featuring integrated graphics
• Zintegrowana karta dźwiękowa: Realtek® ALC 897 7.1-Channel High Definition Audio CODEC
• Gniazda karty dźwiękowej: Wewnętrzne gniazdo audio przedniego panelu, 3x Audio Jack
• Złącza PCI Express x16: 4
• Uwagi do złącz PCI: PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset), PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset), PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset)
• Port LAN: 1x 5 Gigabit LAN Intel® Killer™ E5000
• Uwagi do karty sieciowej:
• Maksymalna ilość portów USB 2.0: 8
• Maksymalna ilość portów USB 3.x: 9

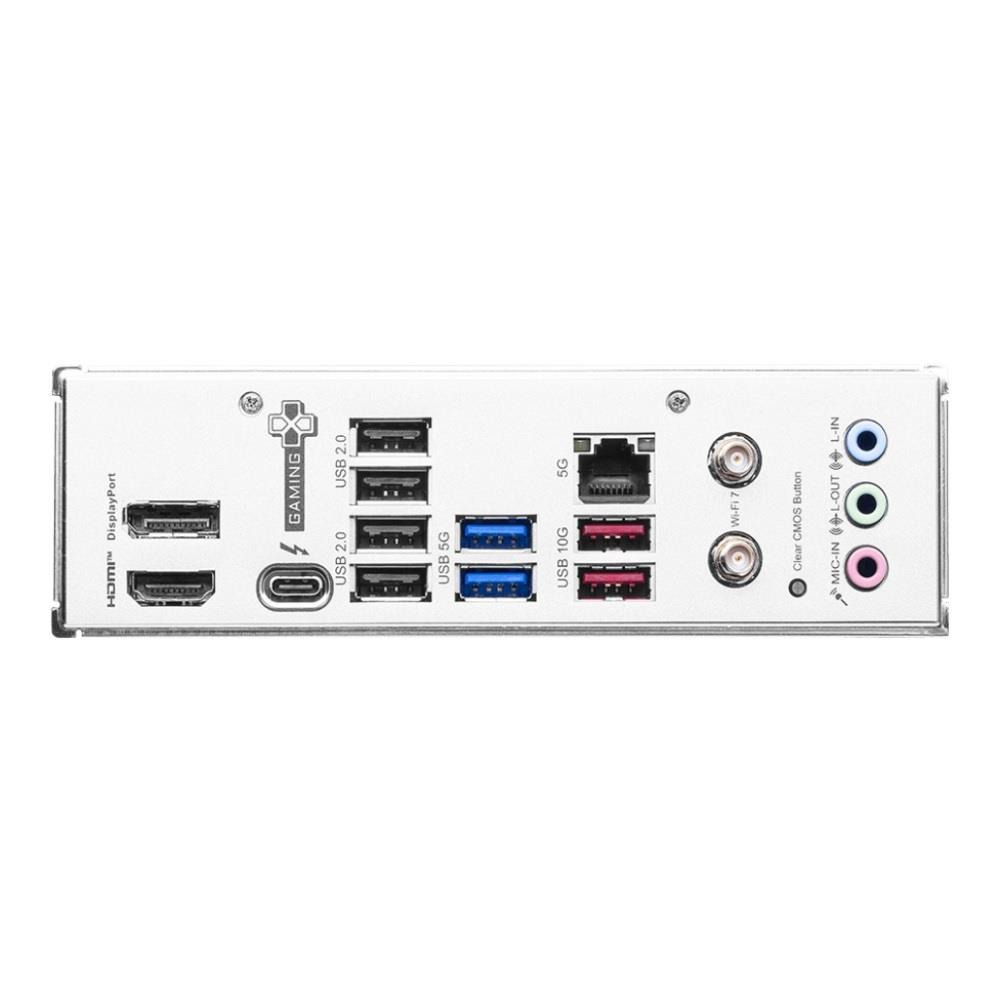

• Porty USB na panelu tylnym: 4x USB 2.0 + 2x USB 3.0 + 2x USB 3.1
• Gniazda USB na płycie głównej: 2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 1x USB 3.1 Type-C (1 port)
• Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax/be
• Port Bluetooth: Bluetooth V5.4
• Uwagi do WiFi / BT: Intel Killer™ BE1750x Wi-Fi 7, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax/ be, Supports Bluetooth® 5.4**, MLO, 4KQAM, 6GHz band support may depend on every country’s regulations and Wi-Fi 7, will be ready in Windows 11 SV3, The Bluetooth version may be updated, please refer to the Wi-Fi chipset, vendor's website for details. Bluetooth 5.4 support schedule depends on, Windows 11 plan
• Port PS/2: Brak
• Port szeregowy (COM): 1x wewnętrzne gniazdo portu COM
• Port równoległy (LPT): Brak
• Inne porty i gniazda: CPU Fan, Combo Fan (Pump_Sys Fan), 4x System Fan, EZ Conn-header (JAF_1), Chassis Intrusion (JCI), Tuning Controller Connector, 2x Addressable V2 RGB LED connector, RGB LED connector, Gniazdo modułu TPM, 2x Antenna Ports, 4x EZ Debug LED, Clear CMOS button(s), Thunderbolt 5 card connector(JTBT5, support RTD3)
• Gniazdo zasilania: ATX (24-pin) + ATX12V (8-pin) + ATX12V (4-pin) + PCIe (8-pin)
• Wymiary [S x W] (mm): 243,84 x 304,8
• Opakowanie: BOX
• Wyposażenie dodatkowe: SATA Cables, EZ M.2 Clips II, EZ M.2 Clip II Remover, EZ Wi-Fi Antenna, 1 to 2 EZ Conn-Cable (V1)
• Zawiera baterię / akumulator: Tak
• Informacje dodatkowe: Support for Windows 11 64-bit
