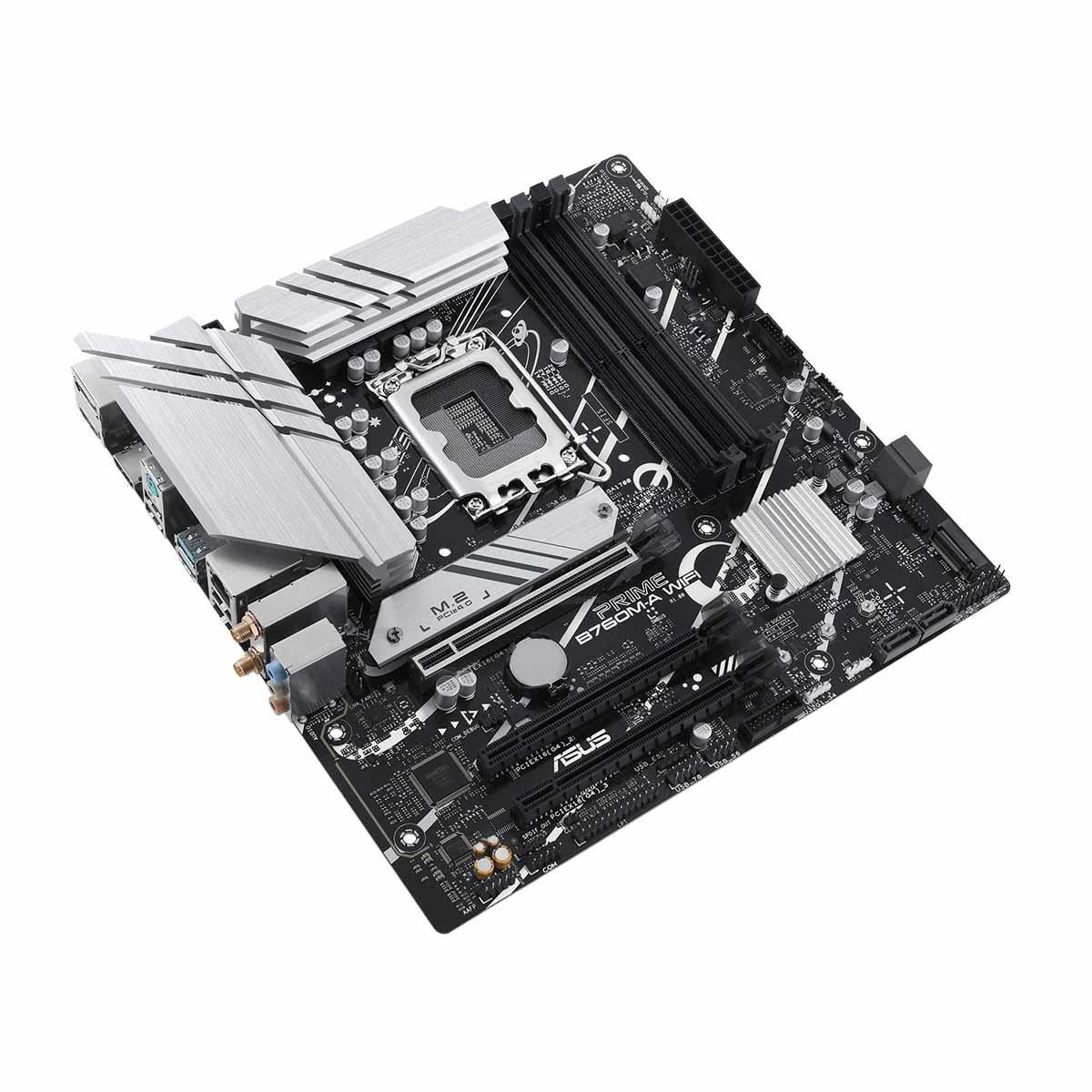

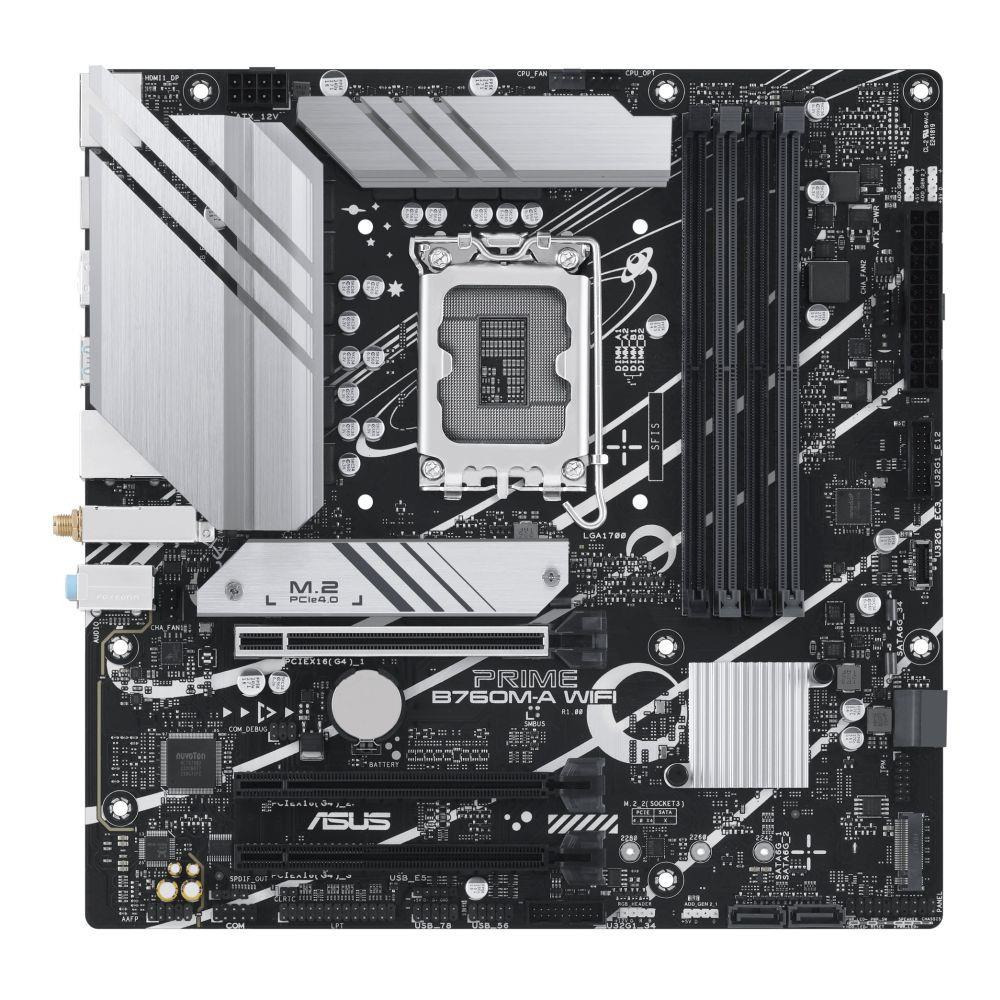

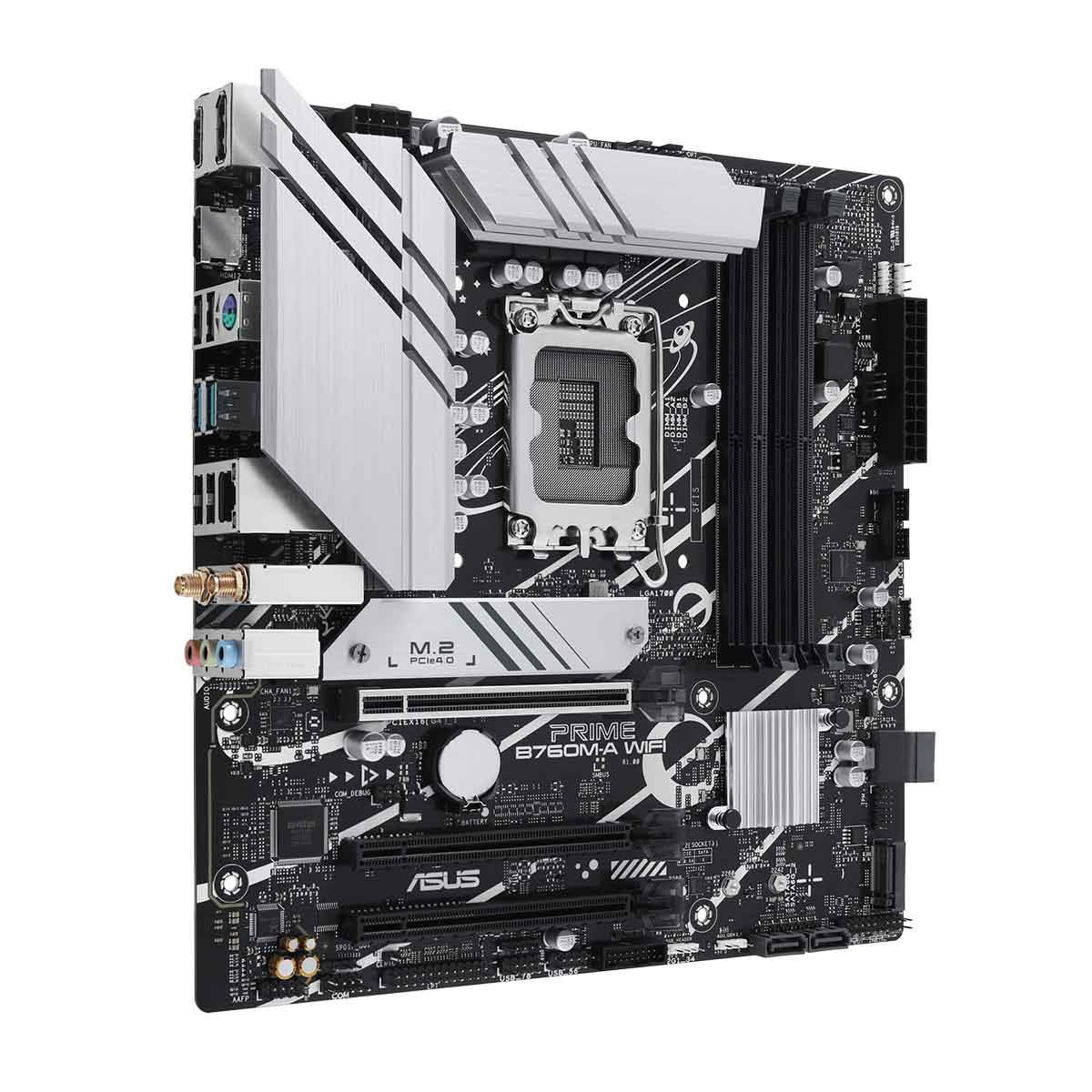

Płyta Asus PRIME B760M-A WIFI /B760/DDR5/SATA3/M.2/USB3.1/WiFi/BT/PCIe4.0/s.1700/mATX

Parametry

• Gniazdo procesora: Socket 1700
• Obsługiwane typy procesorów: Intel Core i3 12th Generation, Intel Core i3 13th Generation, Intel Core i3 14th Generation, Intel Core i5 12th Generation, Intel Core i5 13th Generation, Intel Core i5 14th Generation, Intel Core i7 12th Generation, Intel Core i7 13th Generation, Intel Core i7 14th Generation, Intel Core i9 12th Generation, Intel Core i9 13th Generation, Intel Core i9 14th Generation, Intel Pentium™ (Socket 1700), Intel Celeron™ (Socket 1700)
• Uwagi do procesora: Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max, Technology 3.0, Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types
• Format płyty: Micro-ATX
• BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
• Chipset płyty głównej: Intel® B760
• Ilość złącz pamięci DDR5: 4
• Maksymalna wielkość pamięci: 192 GB
• Tryb pracy pamięci RAM: Dual Channel
• Standard pamięci: DDR5-7200+ (OC), DDR5-7000 (OC), DDR5-6800 (OC), DDR5-6600 (OC), DDR5-6400 (OC), DDR5-6200 (OC), DDR5-6000 (OC), DDR5-5800 (OC), DDR5-5600, DDR5-5400, DDR5-5200, DDR5-5000, DDR5-4800
• Uwagi do pamięci RAM: Supports Intel® Extreme Memory Profile (XMP), OptiMem II, Non-ECC, un-buffered DDR5 memory supports On-Die ECC function, Supported memory types, data rate (speed), and number of DRAM modules, vary depending on the CPU and memory configuration, for more information, please refer to CPU/Memory Support under the Support tab or visit
• Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,10,5 + 2x M.2
• Uwagi do kontrolera SATA: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports, Intel® 13th & 12th Gen Processors:, - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), Intel® B760 Chipset:, - M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), - M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode), - 4 x SATA 6Gb/s ports, Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10
• Wbudowana karta graficzna: Brak lub Intel® UHD Graphics 730/750/770/Iris Xe (zależy od procesora)
• Gniazda karty graficznej: 2x HDMI, DisplayPort
• Uwagi do karty graficznej: Graphics specifications may vary between CPU types, Supports max. 4K@60Hz as specified in DisplayPort 1.4., Supports 4K@60Hz as specified in HDMI 2.1.
• Zintegrowana karta dźwiękowa: Realtek ® 7.1 Surround Sound High Definition Audio CODEC
• Gniazda karty dźwiękowej: 3x Audio Jack, Wewnętrzne gniazdo S/PDIF Out, Wewnętrzne gniazdo audio przedniego panelu
• Uwagi do karty dźwiękowej: Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Supports up to 24-Bit/192 kHz playback, Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers, A chassis with an HD audio module in the front panel is required to, support 7.1 Surround Sound audio output
• Złącza PCI Express x16: 3
• Uwagi do złącz PCI: Intel® 13th & 12th Gen Processors:, - 1 x PCIe 4.0 x16 slot, Intel® B760 Chipset:, - 1 x PCIe 4.0 x16 slot (supports x4 mode), - 1 x PCIe 4.0 x16 slot (supports x1 mode), To ensure compatibility of the device installed, please refer to
• Port LAN: 1x 2,5 Gigabit LAN 100/1000/2500 Mb/s (Realtek®)
• Uwagi do karty sieciowej:
• Maksymalna ilość portów USB 2.0: 9
• Maksymalna ilość portów USB 3.x: 7

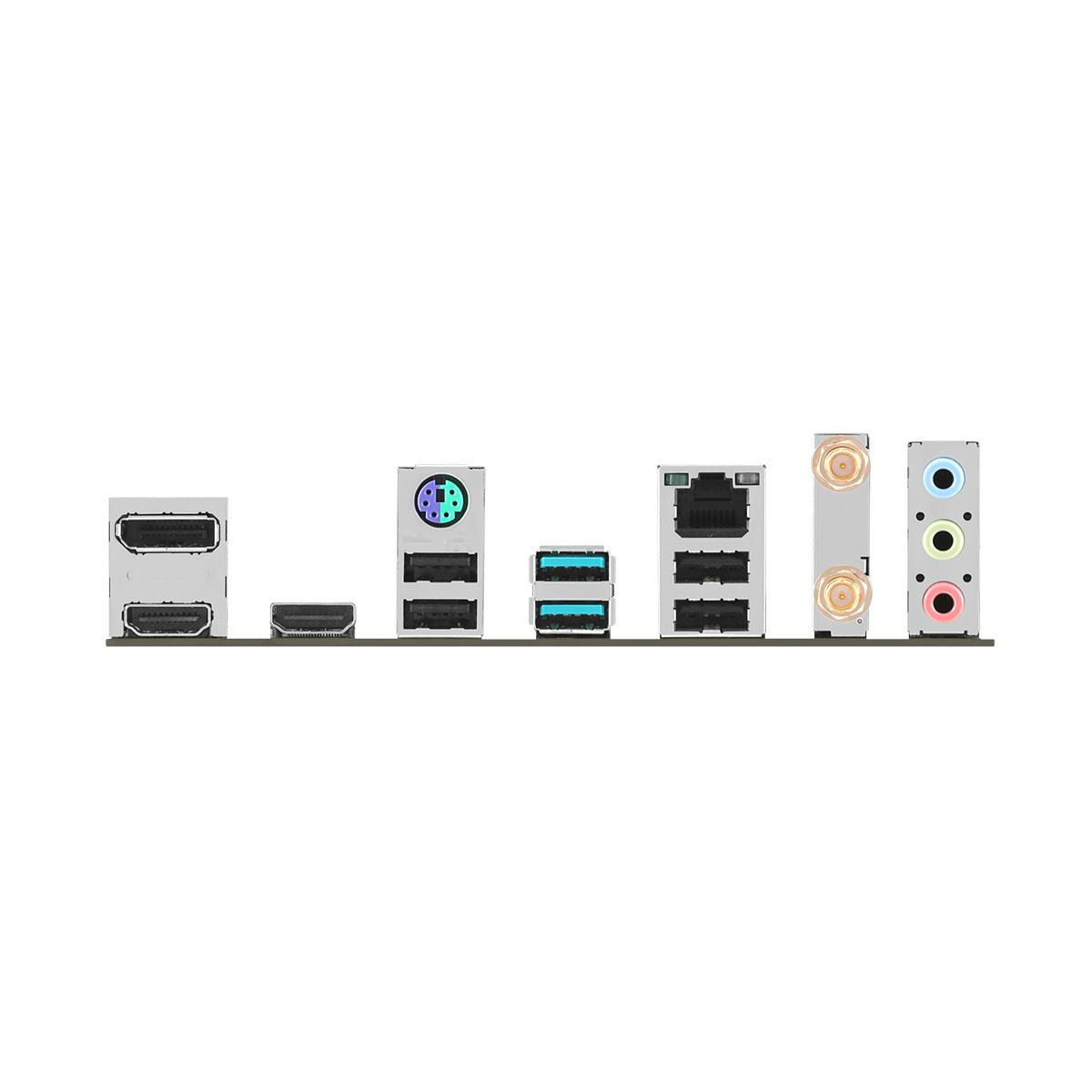

• Porty USB na panelu tylnym: 4x USB 2.0 + 2x USB 3.0
• Gniazda USB na płycie głównej: 3x USB 2.0 (5 portów) + 2x USB 3.0 (4 porty) + 1x USB 3.0 Type-C (1 port)
• Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax
• Port Bluetooth: Bluetooth V5.2
• Uwagi do WiFi / BT: 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Supports 2.4/5GHz frequency band, The Bluetooth version may vary, please refer to the Wi-Fi module, manufacturer's website for the latest specifications
• Port PS/2: Port combo klawiatury/myszy PS/2
• Port szeregowy (COM): 1x wewnętrzne gniazdo portu COM
• Port równoległy (LPT): 1x wewnętrzne gniazdo portu LPT
• Inne porty i gniazda: 4-pin CPU OPT Fan header, 4-pin AIO Pump header, 3x Addressable Gen 2 header, AURA RGB header, Clear CMOS header
• Gniazdo zasilania: ATX (24-pin) + ATX12V (8-pin)
• Wymiary [S x W] (mm): 244 x 244
• Opakowanie: BOX
• Wyposażenie dodatkowe: 2 x SATA 6Gb/s cables, 1 x ASUS Wi-Fi moving antennas, 1 x I/O Shield, 1 x M.2 Rubber Package, 1 x Screw package for M.2 SSD, 1 x User guide
• Zawiera baterię / akumulator: Tak
• Informacje dodatkowe: Manageability: WOL by PME, PXE, Operating System: Windows® 11, Windows® 10 64-bit
