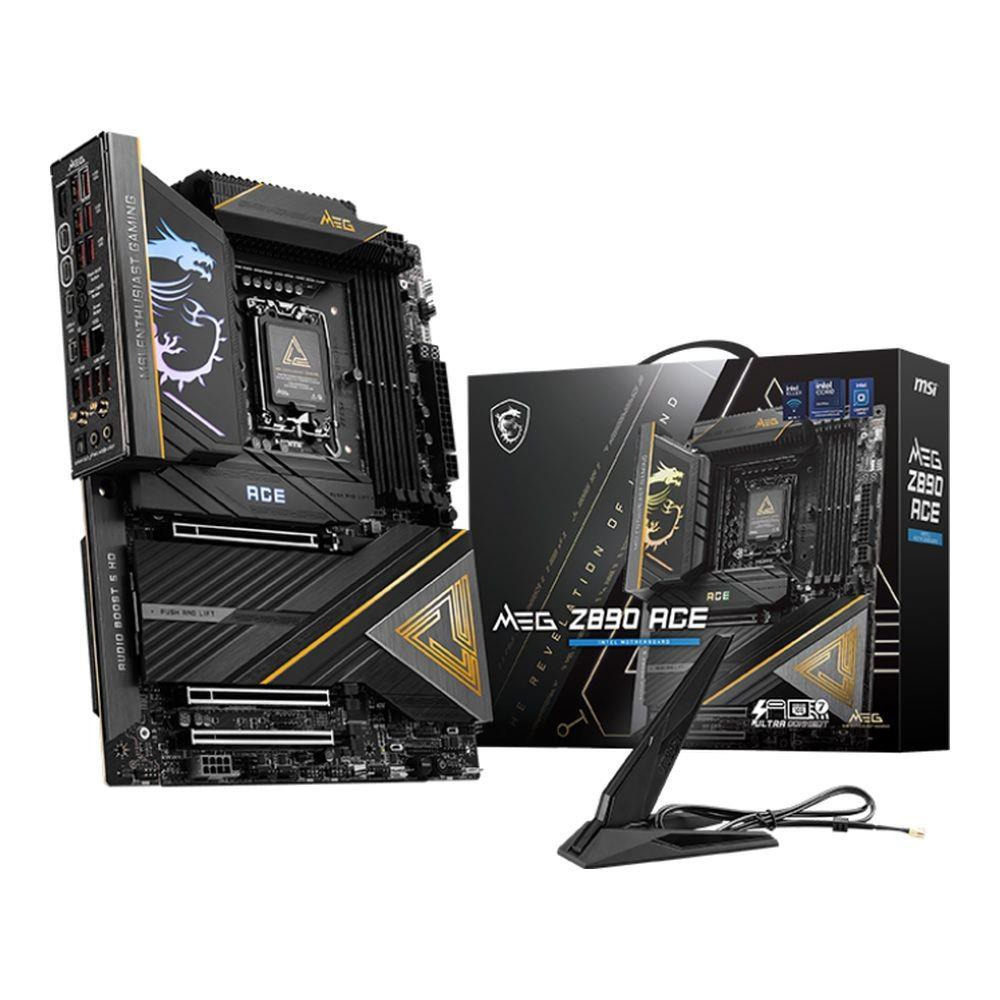

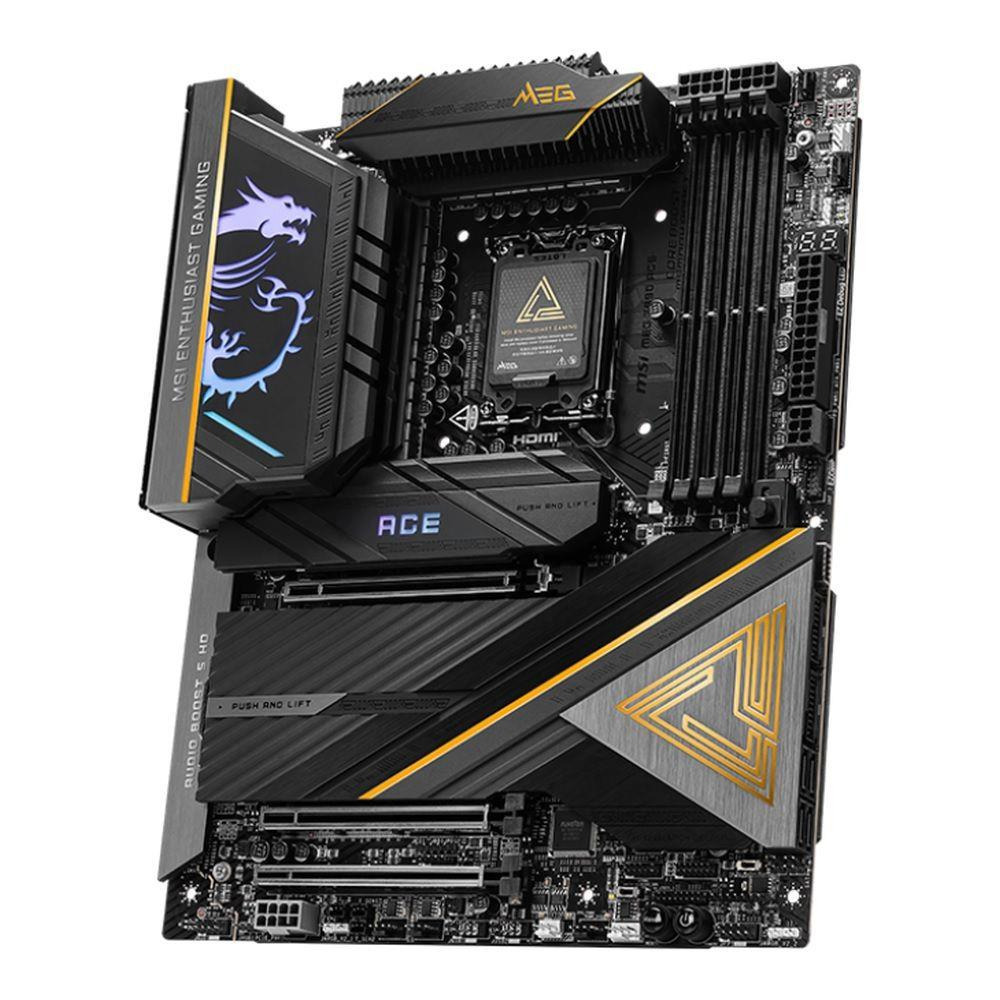

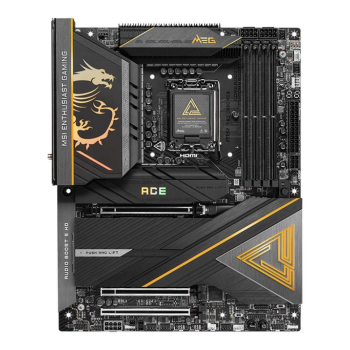

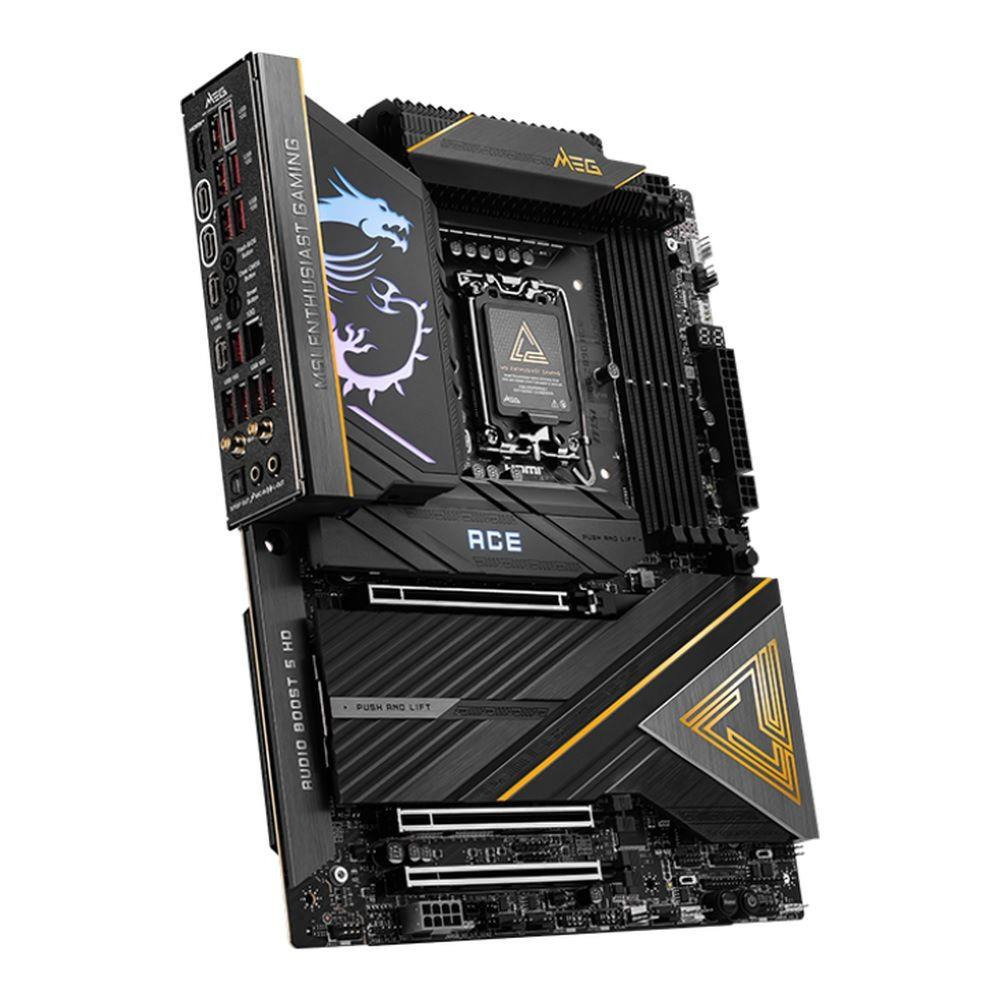

Płyta MSI MEG Z890 ACE /Z890/DDR5/SATA3/M.2/TB4/WiFi/BT/PCIe5.0/s.1851/ATX

Parametry

• Gniazdo procesora: Socket 1851
• Obsługiwane typy procesorów: Intel Core Ultra Processors (series 2)
• Uwagi do procesora:
• Format płyty: ATX
• BIOS:
• Chipset płyty głównej: Intel® Z890
• Ilość złącz pamięci DDR5: 4
• Maksymalna wielkość pamięci: 256 GB
• Tryb pracy pamięci RAM: Dual Channel
• Standard pamięci:
• Uwagi do pamięci RAM: Max. overclocking frequency:, - 1DPC 1R Max speed up to 9200+ MT/s, - 1DPC 2R Max speed up to 7200+ MT/s, - 2DPC 1R Max speed up to 6400+ MT/s, - 2DPC 2R Max speed up to 5600+ MT/s, Supports Intel® POR Speed and JEDEC Speed, Supports Memory Overclocking and Intel® XMP 3.0, Supports Non-ECC, Un-buffered memory, Supports CUDIMM
• Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s - RAID 0,1,5,10 + 5x M.2 + RAID 0,1,5,10
• Uwagi do kontrolera SATA: - M.2_1 Source (From CPU) supports up to PCIe 5.0 x4,, supports 2280/2260 devices, - M.2_2 Source (From CPU) supports up to PCIe 4.0 x4,, - M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 ,, - M.2_4 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4,, supports 22110/2280/2260 devices, - M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode,, supports 22110/2280 devices, M2_4 default from chipset, can support PCIe 5.0 x4 (From CPU) by manual, BIOS adjustment, M2_4 and M2_5 cannot support 22110 Device at the same time, Please refer to the manual for M.2 SSD heatsink restrictions.
• Gniazda karty graficznej: HDMI, 2x Thunderbolt
• Uwagi do karty graficznej: Support HDMI 2.1 with FRL port, maximum resolution of 8K 60Hz, Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over, USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz, Graphics specifications may vary depending on the CPU installed
• Zintegrowana karta dźwiękowa: Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA
• Gniazda karty dźwiękowej: Wewnętrzne gniazdo audio przedniego panelu, 2x Audio Jack, Wyjście optyczne S/PDIF
• Uwagi do karty dźwiękowej: 7.1-Channel USB High-Performance Audio, Supports up to 32-Bit/384 kHz playback on front panel
• Złącza PCI Express x16: 3
• Uwagi do złącz PCI: - PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), - PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU), - PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset), PCI_E1 support manual BIOS adjustment to X8+X8/X8+X4+X4, PCI_E2 support manual BIOS adjustment to X4+X4, PCI_E1 slot will run at x8 speed when PCI_E2 slot installing device, PCI_E1 slot will run at x8 speed and PCI_E2 slot will run at x4 speed when, installing PCIe Gen 5 M.2 device in the M2_4 slot.
• Port LAN: 1x 10 Gigabit LAN Marvell® AQC113CS
• Uwagi do karty sieciowej:
• Maksymalna ilość portów USB 2.0: 4
• Maksymalna ilość portów USB 3.x: 18
• Maksymalna ilość portów USB 4.0: 2

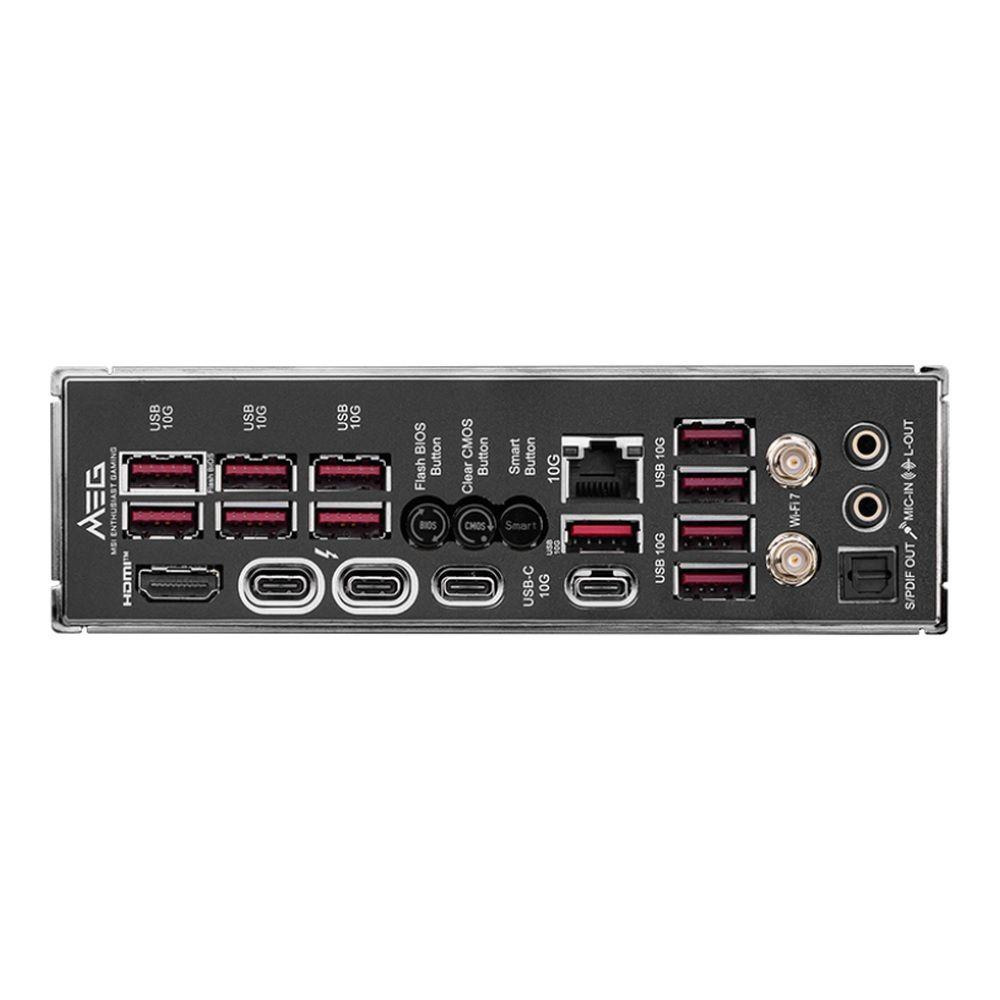

• Porty USB na panelu tylnym: 11x USB 3.1 + 2x USB 3.1 Type-C + 2x Thunderbolt 4/USB4
• Gniazda USB na płycie głównej: 4x USB 2.0 + 4x USB 3.0 + 1x USB 3.2 Type-C
• Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax/be
• Port Bluetooth: Bluetooth V5.4
• Uwagi do WiFi / BT: Intel® Killer™ BE1750x Wi-Fi 7, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax/ be, Supports Bluetooth® 5.4**, MLO, 4KQAM, 6GHz band support may depend on every country’s regulations and Wi-Fi 7, will be ready in Windows 11 version 24H2., The Bluetooth version may be updated, please refer to the Wi-Fi chipset, vendor’s website for details. Bluetooth 5.4 will be ready in, Windows 11 version 24H2.
• Port PS/2: Brak
• Port szeregowy (COM): Brak
• Port równoległy (LPT): Brak
• Inne porty i gniazda: CPU Fan, 2x Combo Fan (Pump_Sys Fan), 5x System Fan, EZ Conn-header (JAF_2), 2x Front Panel, Chassis Intrusion (JCI), Water Flow connector, Slow mode booting jumper, Thermal Sensor connectors, Tuning Controller Connector, 3x Addressable V2 RGB LED connector, RGB LED connector, TPM pin header, V-check point
• Gniazdo zasilania: ATX (24-pin) + 2x ATX12V (8-pin) + PCIe (8-pin)
• Wymiary [S x W] (mm): 243,84 x 304,8
• Opakowanie: BOX
• Wyposażenie dodatkowe:
• Zawiera baterię / akumulator: Tak
• Informacje dodatkowe: Support for Windows® 11 64-bit
