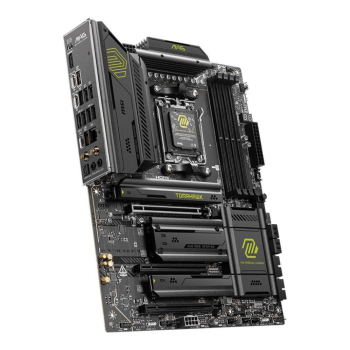

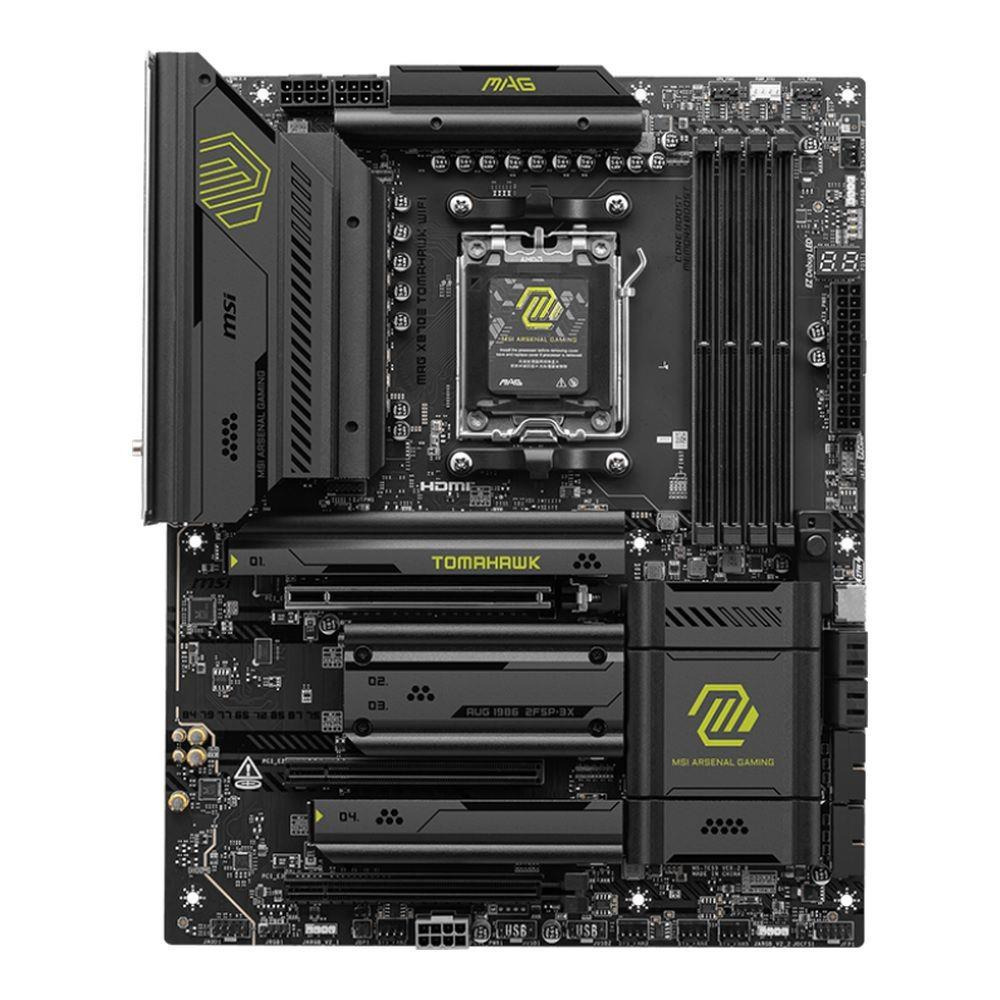

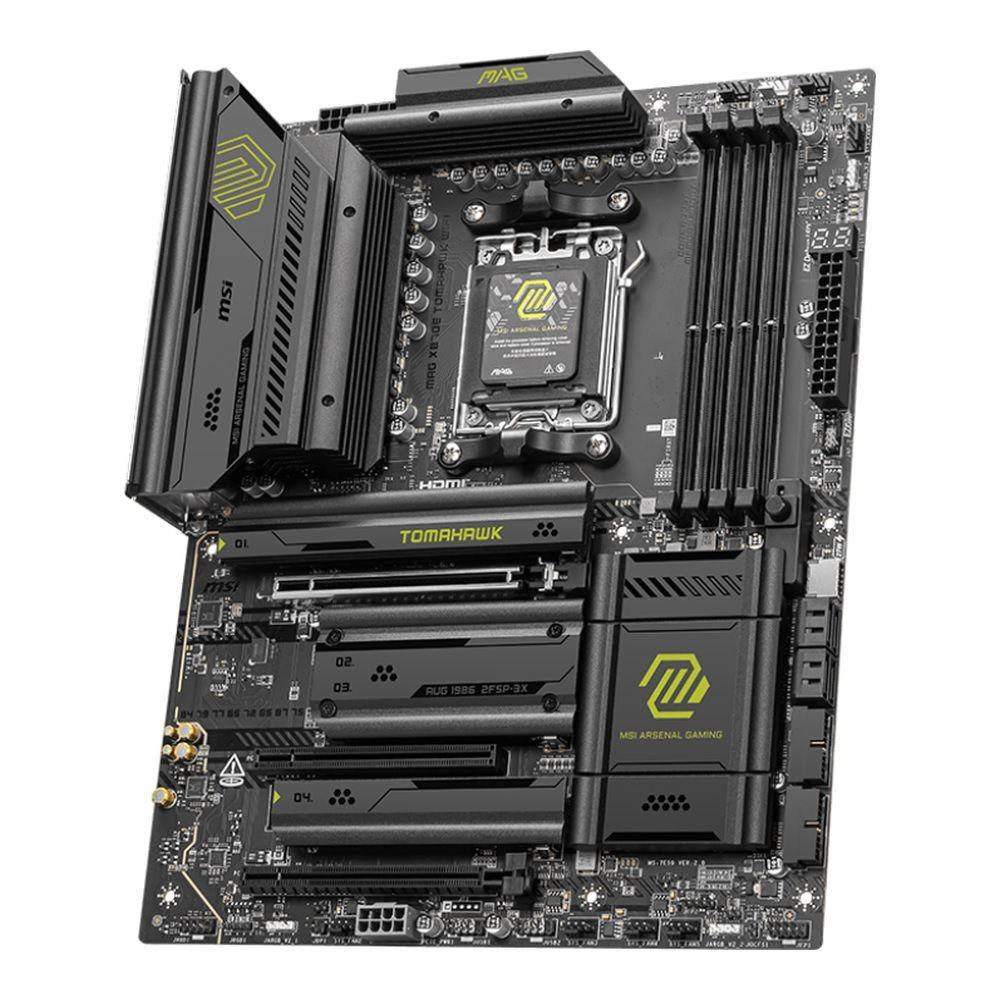

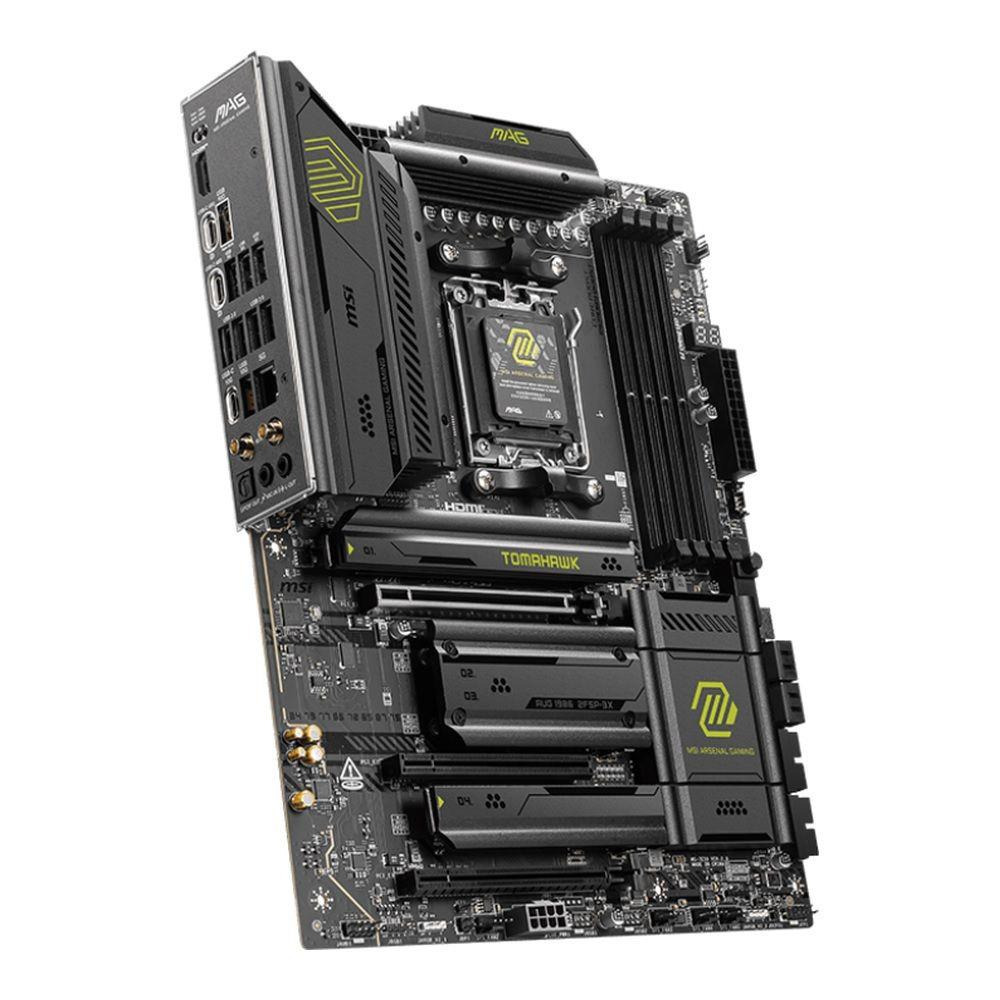

Płyta MSI MAG X870E TOMAHAWK WIFI /AMD X870/DDR5/SATA3/M.2/USB4/WiFi/BT/PCIe5.0/AM5/ATX

Parametry

• Gniazdo procesora: Socket AM5
• Obsługiwane typy procesorów: AMD Ryzen™ (AM5)
• Uwagi do procesora: Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
• Format płyty: ATX
• BIOS:
• Chipset płyty głównej: AMD X870
• Ilość złącz pamięci DDR5: 4
• Maksymalna wielkość pamięci: 256 GB
• Tryb pracy pamięci RAM: Dual Channel
• Standard pamięci: DDR5-4800, DDR5-5000, DDR5-5200, DDR5-5400, DDR5-5600 (OC), DDR5-5800 (OC), DDR5-6000 (OC), DDR5-6200 (OC), DDR5-6400 (OC), DDR5-6600 (OC), DDR5-6800 (OC), DDR5-7000 (OC), DDR5-7200 (OC), DDR5-7400 (OC), DDR5-7600 (OC), DDR5-7800 (OC), DDR5-8000 (OC), DDR5-8200 (OC), DDR5-8266 (OC), DDR5-8333 (OC), DDR5-8400 (OC)
• Uwagi do pamięci RAM: Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s, Ryzen™ 9000 Series Processors max. overclocking frequency:, - 1DPC 1R Max speed up to 8400+ MT/s, - 1DPC 2R Max speed up to 6400+ MT/s, - 2DPC 1R Max speed up to 6400+ MT/s, - 2DPC 2R Max speed up to 4800+ MT/s, Supports AMD POR Speed and JEDEC Speed, Supports Memory Overclocking and AMD EXPO, Supports Dual-Channel mode, Supports Non-ECC, Un-buffered memory, Supports CUDIMM, Clock Driver bypass mode only
• Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s + 4x M.2
• Uwagi do kontrolera SATA: - M.2_1 Source (From CPU) supports up to PCIe 5.0 x4,, supports 22110/2280 devices, - M.2_2 Source (From CPU) supports up to PCIe 5.0 x4,, supports 2280/2260 devices, - M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4,, - M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4,, M.2_1:, - Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors), - Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors), M.2_2:, - The M2_2 slot will be unavailable when using, Ryzen™ 8000 Series processors
• Wbudowana karta graficzna: Brak lub AMD Radeon™ Graphics (zależy od procesora)
• Gniazda karty graficznej: 2x USB4 Type-C, HDMI
• Uwagi do karty graficznej: USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum, resolution of 4K@60Hz, Available only on processors featuring integrated graphics, Graphics specifications may vary depending on the CPU installed., Support HDMI 2.1 with FRL port, maximum resolution of 8K 60Hz
• Zintegrowana karta dźwiękowa: Realtek® ALC4080 7.1-Channel USB High Performance Audio CODEC
• Gniazda karty dźwiękowej: Wewnętrzne gniazdo audio przedniego panelu, 2x Audio Jack, Wyjście optyczne S/PDIF
• Uwagi do karty dźwiękowej: Supports up to 32-Bit/384 kHz playback on front panel
• Złącza PCI Express x16: 3
• Uwagi do złącz PCI: - PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), - PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), - PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset), PCI_E1 slot:, - Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors), - Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors), - Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
• Port LAN: 1x 5 Gigabit LAN Realtek® 8126
• Uwagi do karty sieciowej:
• Maksymalna ilość portów USB 2.0: 8
• Maksymalna ilość portów USB 3.x: 11
• Maksymalna ilość portów USB 4.0: 2

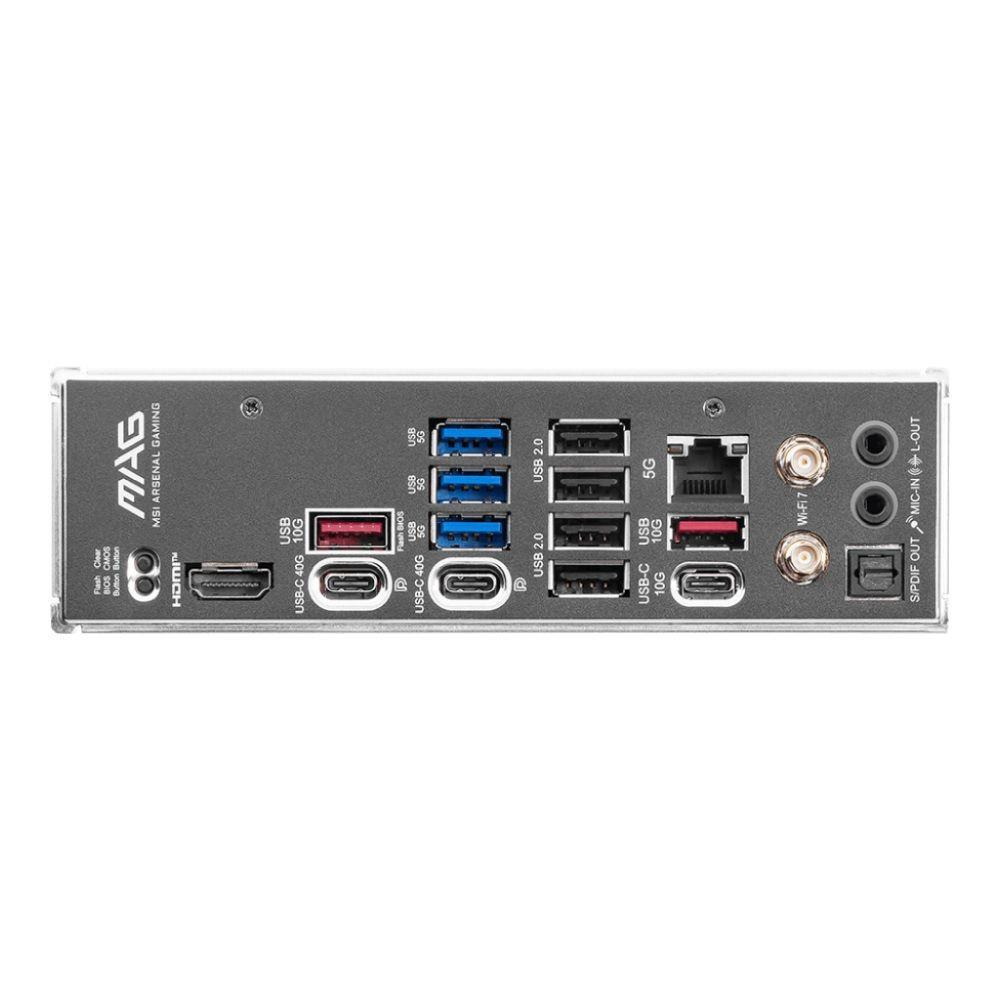

• Porty USB na panelu tylnym: 4x USB 2.0 + 3x USB 3.0 + 2x USB 3.1 + 1x USB 3.1 Type-C + 2x USB4 Type-C
• Gniazda USB na płycie głównej: 4x USB 2.0 + 4x USB 3.0 + 1x USB 3.2 Type-C
• Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax/be
• Port Bluetooth: Bluetooth V5.4
• Uwagi do WiFi / BT: Wi-Fi 7, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps, Supports Bluetooth 5.4, MLO, 4KQAM, 6GHz band support may depend on every country’s regulations and Wi-Fi 7, will be ready in Windows 11 version 24H2, The Bluetooth version may be updated, please refer to the Wi-Fi chipset, vendor’s website for details, Bluetooth 5.4 will be ready in Windows 11 version 24H2
• Port PS/2: Brak
• Port szeregowy (COM): Brak
• Port równoległy (LPT): Brak
• Inne porty i gniazda: CPU Fan, Combo Fan (Pump_Sys Fan), 6x System Fan, 2x Front Panel, Chassis Intrusion (JCI), 3x Addressable V2 RGB LED connector, RGB LED connector, TPM pin header, EZ Conn-header (JAF_2)
• Gniazdo zasilania: ATX (24-pin) + 2x ATX12V (8-pin) + PCIe (8-pin)
• Wymiary [S x W] (mm): 243,84 x 304,8

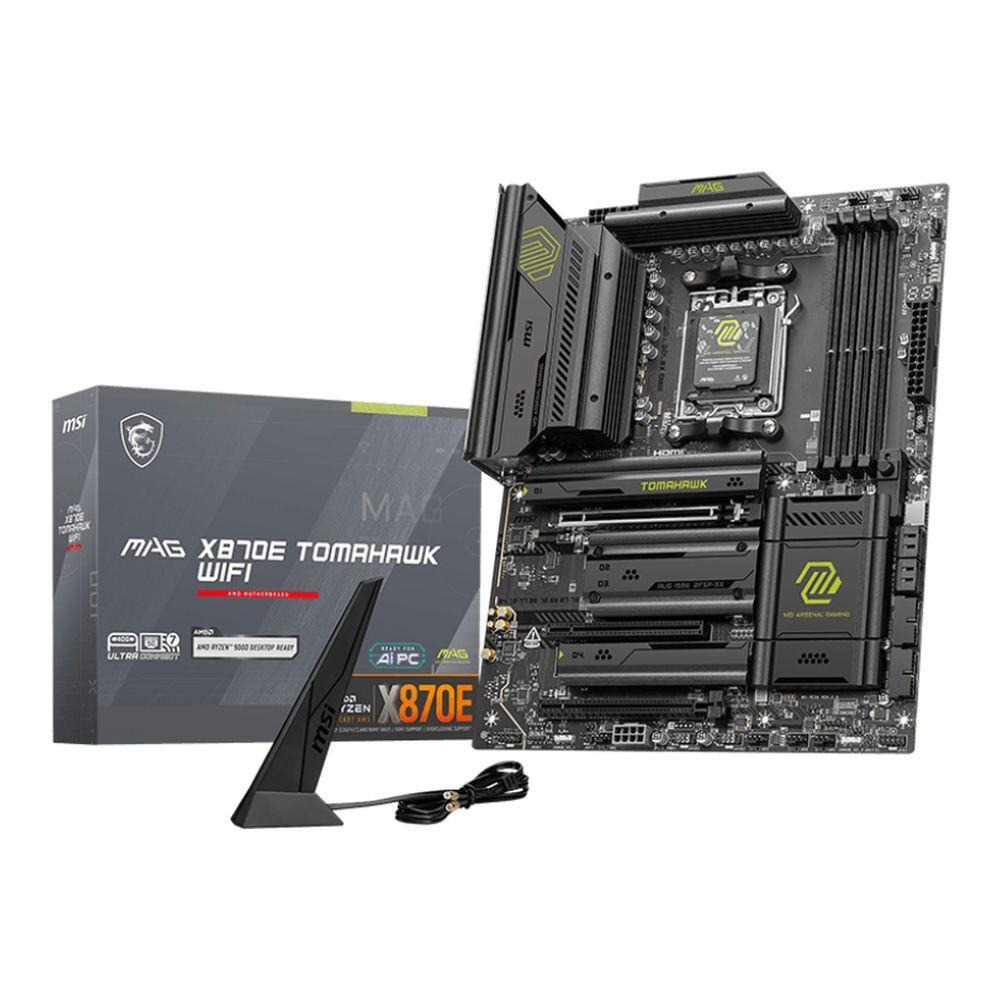

• Opakowanie: BOX
• Wyposażenie dodatkowe: EZ Wi-Fi antenna, EZ M.2 Clip II Removal
• Zawiera baterię / akumulator: Tak
• Informacje dodatkowe: Support for Windows 11 64-bit
