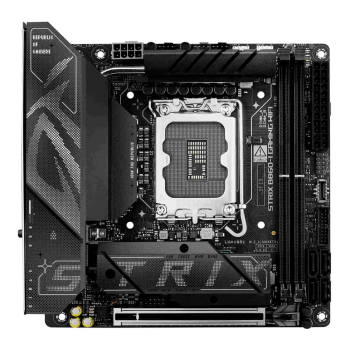

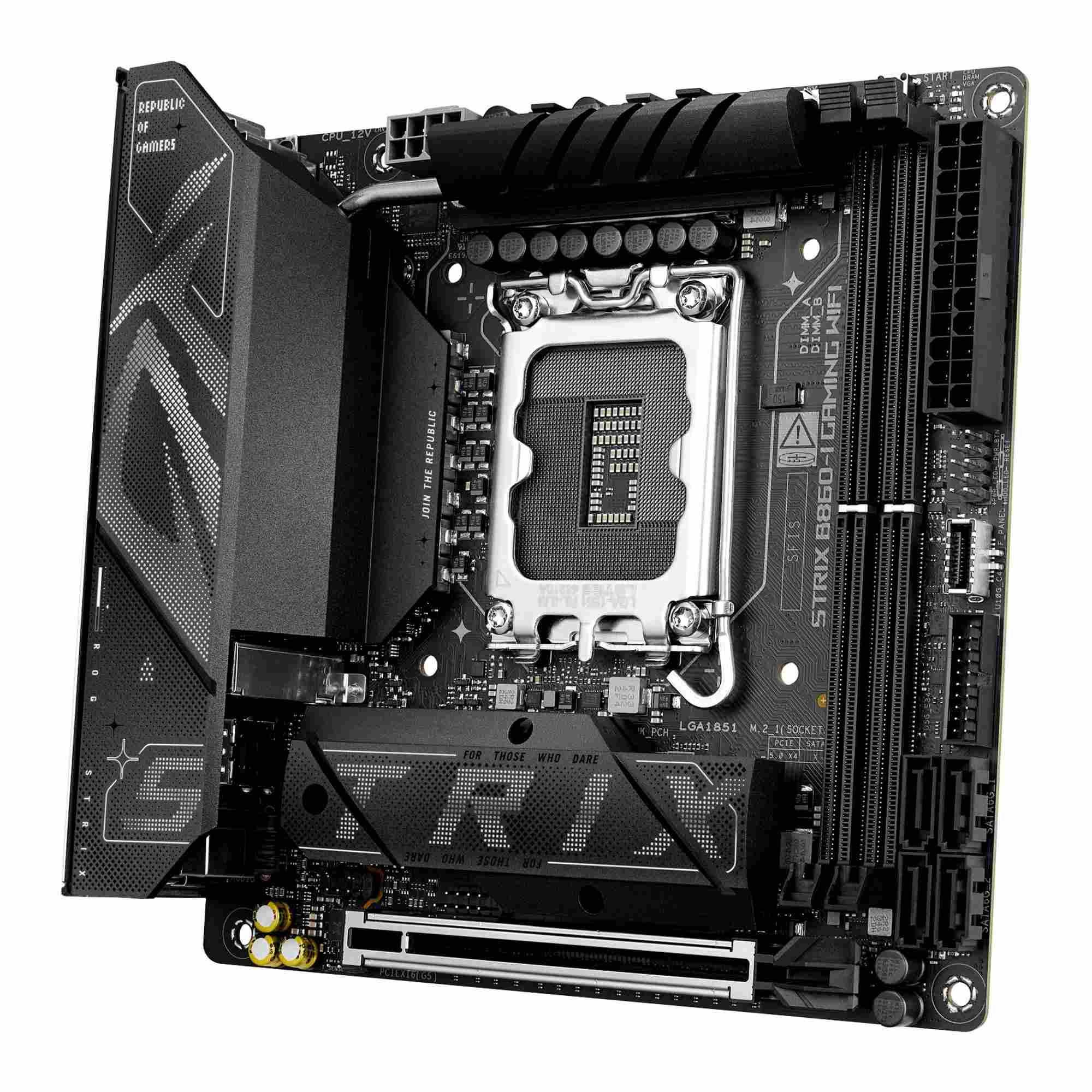

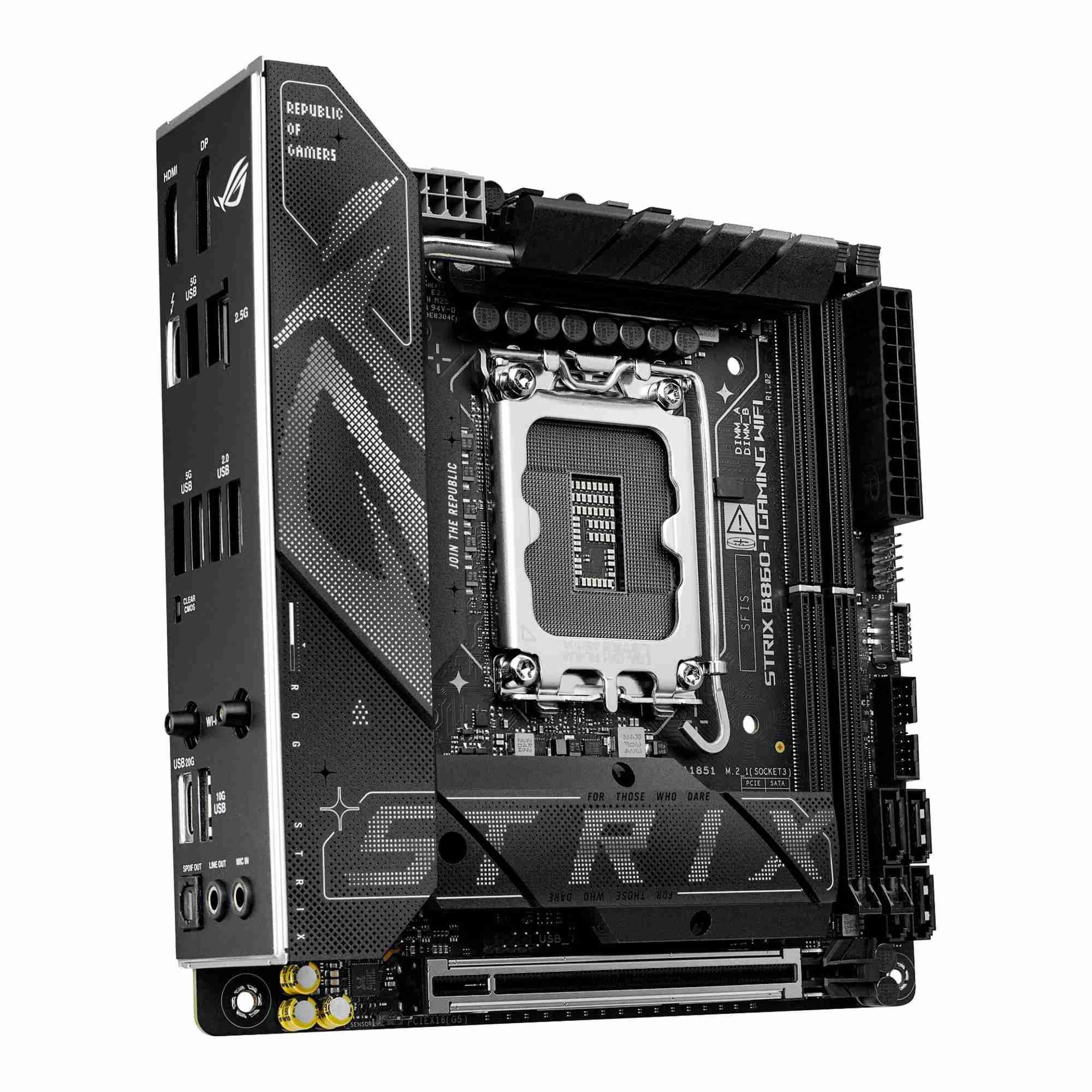

Płyta Asus ROG STRIX B860-I GAMING WIFI /B860/DDR5/SATA3/M.2/TB4/WiFi/BT/PCIe5.0/s.1851/Mini-ITX

Parametry

• Gniazdo procesora: Socket 1851
• Obsługiwane typy procesorów: Intel Core Ultra Processors (series 2)
• Uwagi do procesora: Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max 3.0, Intel Turbo Boost Max Technology 3.0 support depends on the CPU types
• Format płyty: Mini-ITX
• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS; WOL by PME, PXE
• Chipset płyty głównej: Intel® B860
• Ilość złącz pamięci DDR5: 2
• Maksymalna wielkość pamięci: 128 GB
• Tryb pracy pamięci RAM: Dual Channel
• Standard pamięci: DDR5-9066+ (OC)
• Uwagi do pamięci RAM: Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM, Supports Intel® Extreme Memory Profile (XMP) memory module, ASUS Enhanced Memory Profile III (AEMP III), DIMM Fit
• Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s + 2x M.2
• Uwagi do kontrolera SATA: Intel® Core™ Ultra Processors(series 2):, - M.2_1 slot (Key M), type 2260/2280 (supports PCIe 5.0 x4 mode), Intel® B860 Chipset:, - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), - 4 x SATA 6Gb/s ports, Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
• Gniazda karty graficznej: HDMI, DisplayPort, Thunderbolt™ 4
• Uwagi do karty graficznej: Graphics specifications may vary between CPU types. Please refer to, Supports max. 4K@60Hz as specified in DisplayPort 1.4, Supports 4K@60Hz as specified in HDMI 2.1, Supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps,, for resolution support please check DisplayPort 2.1 specs., VGA resolution support depends on processors' or graphic cards' resolution
• Zintegrowana karta dźwiękowa: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
• Gniazda karty dźwiękowej: Wewnętrzne gniazdo audio przedniego panelu, 2x Audio Jack, Wyjście optyczne S/PDIF
• Uwagi do karty dźwiękowej: Impedance sense for front and rear headphone outputs, Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking, High quality 120 dB SNR stereo playback output and 110 dB SNR recording in, Supports up to 32-Bit/384 kHz playback on front panel, Internal audio Amplifier to enhance the highest quality sound for headphone, and speakers, SupremeFX Shielding Technology, Savitech SV3H712 AMP, Premium audio capacitors, Dedicated audio PCB layers
• Złącza PCI Express x16: 1
• Uwagi do złącz PCI: Intel Core Ultra Processors (series 2), - 1 x PCIe 5.0 x16 slot, To ensure compatibility of the device installed, please refer to
• Port LAN: 1x 2,5 Gigabit LAN Intel®
• Uwagi do karty sieciowej: ASUS LANGuard
• Maksymalna ilość portów USB 2.0: 4
• Maksymalna ilość portów USB 3.x: 8
• Maksymalna ilość portów USB 4.0: 1

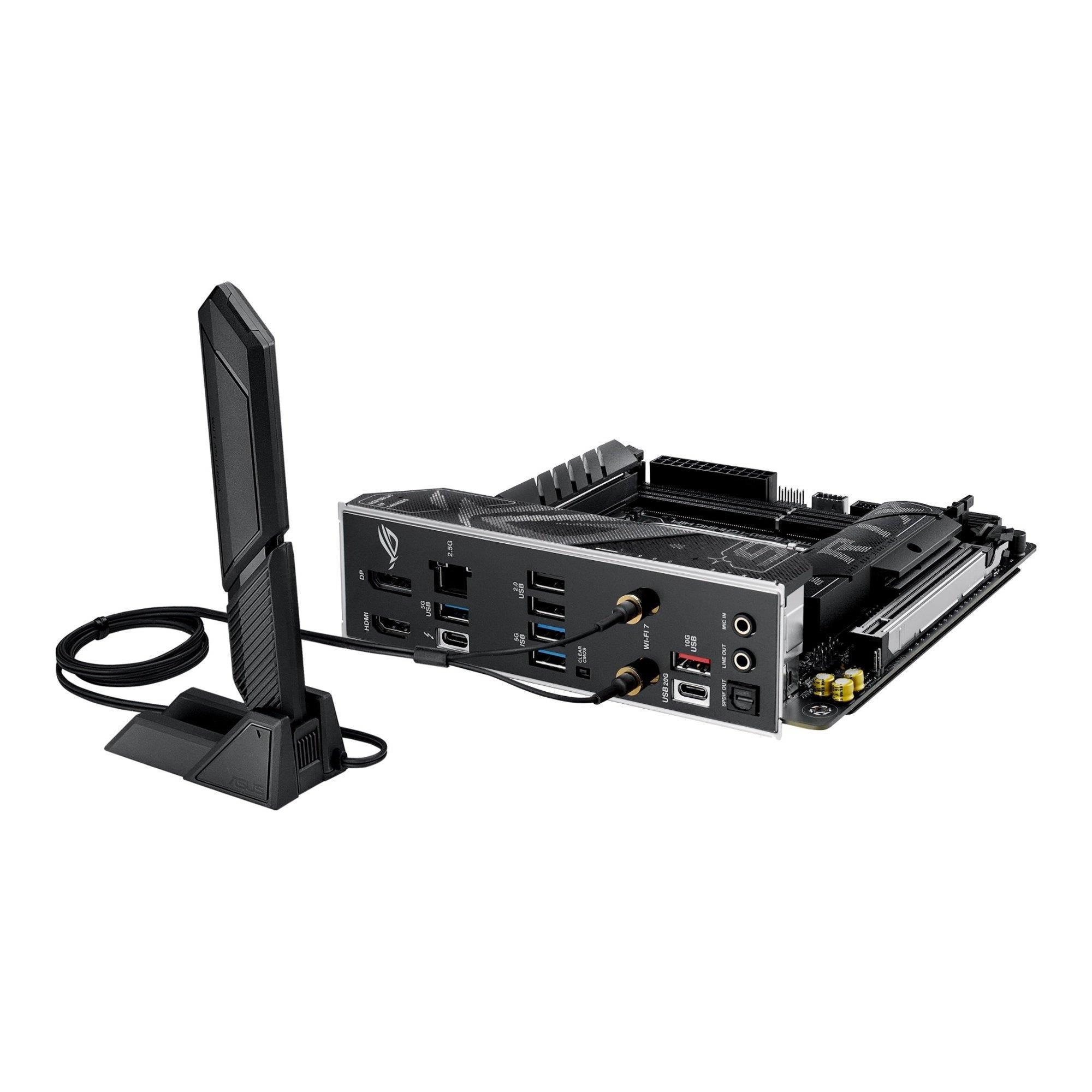

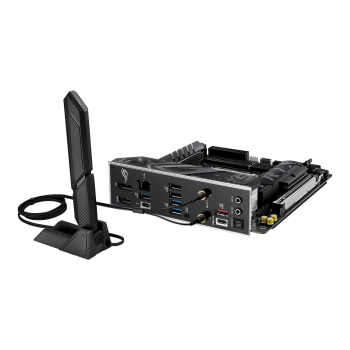

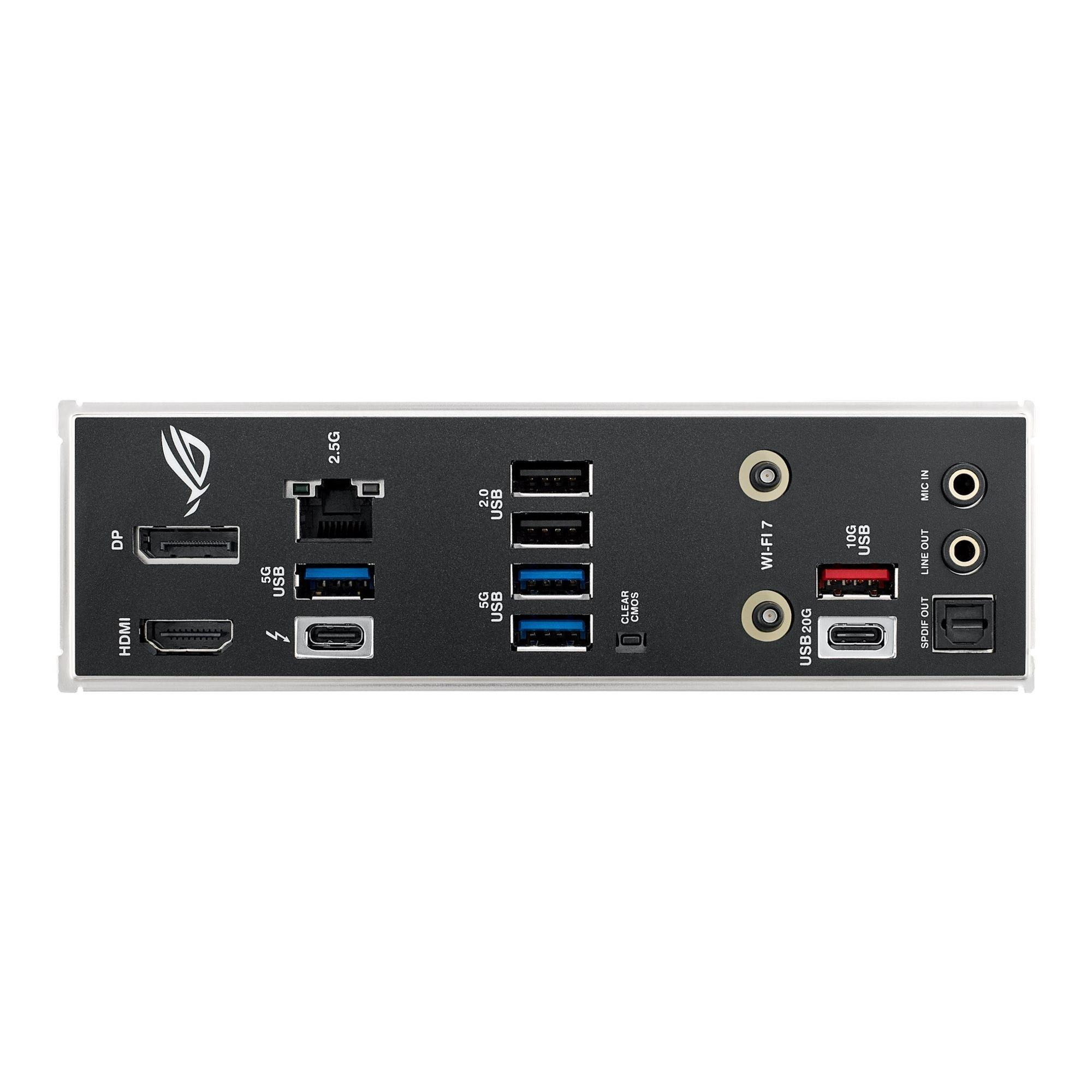

• Porty USB na panelu tylnym: 2x USB 2.0 + 3x USB 3.0 + 1x USB 3.1 + 1x USB 3.2 Type-C + 1x Thunderbolt 4
• Gniazda USB na płycie głównej: 1x USB 2.0 (2 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)
• Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax/be
• Port Bluetooth: Bluetooth V5.4
• Uwagi do WiFi / BT: 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate, Wi-Fi features may vary depending on the operating system, For Windows 11, Wi-Fi 7 will require 24H2 or later version for full, functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E, For Windows 10, please note that no driver is available, Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countr., The Bluetooth version may vary
• Port PS/2: Brak
• Port szeregowy (COM): Brak
• Port równoległy (LPT): Brak
• Inne porty i gniazda: 4-pin CPU Fan header, 4-pin AIO Pump header, 4-pin Chassis Fan header, 2x Addressable Gen 2 header, 10-1 pin System Panel header, Thermal Sensor header, Clear CMOS button(s), Wi-Fi module with an antenna connector
• Gniazdo zasilania: ATX (24-pin) + ATX12V (8-pin)
• Wymiary [S x W] (mm): 170 x 170

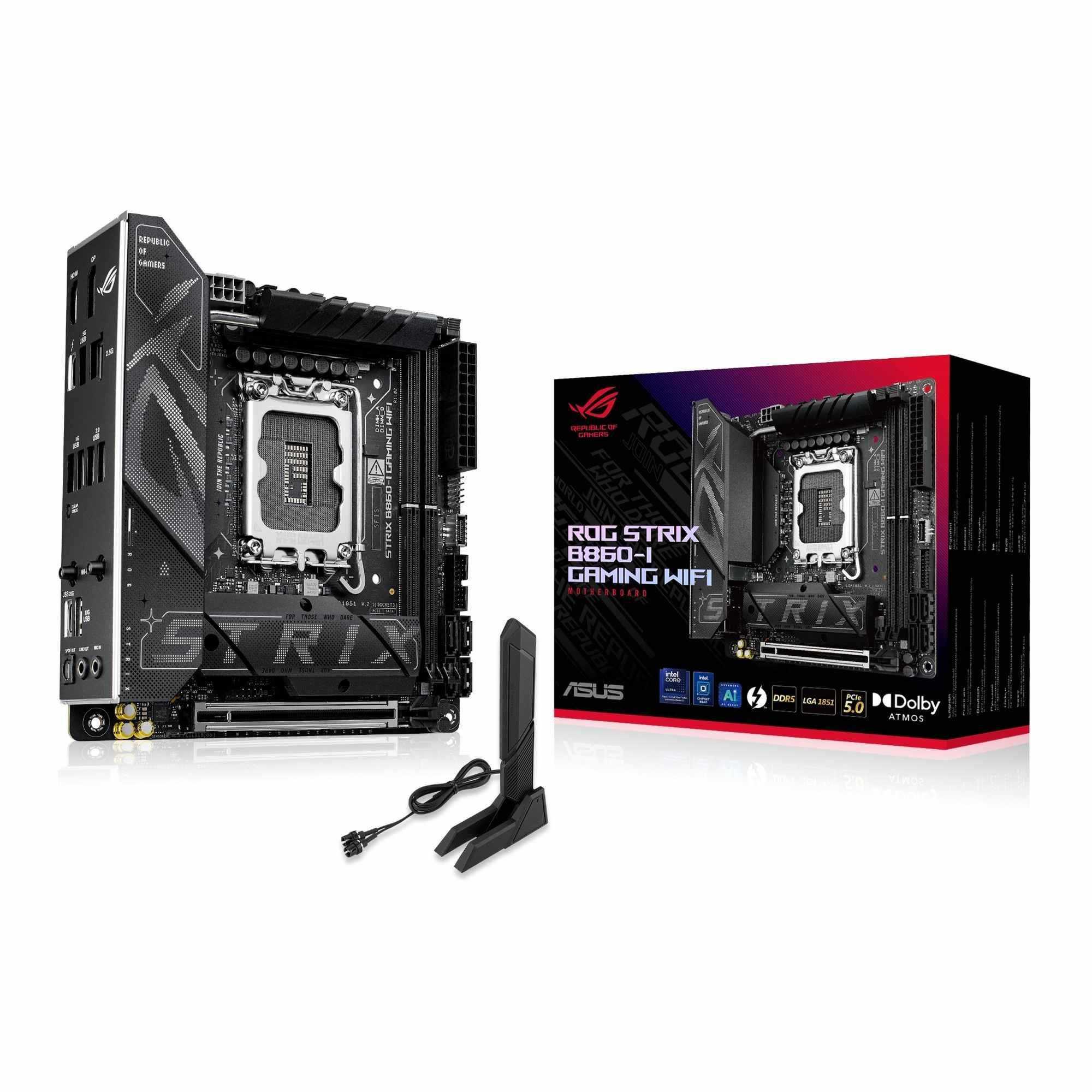

• Wyposażenie dodatkowe: 2 x SATA 6Gb/s cables, 1 x ROG USB2.0 splitter cable, 1 x Panel cable, 1 x ASUS WiFi Q-Antenna, 1 x Cable ties package, 1 x M.2 Q-Latch package, 1 x Screw package for M.2 SSD, 1 x M.2 Bracket, 1 x ROG key chain, 1 x ROG Strix stickers, 1 x Quick start guide
• Zawiera baterię / akumulator: Tak
• Informacje dodatkowe: Operating System: Windows 11 (22H2 & later)
